PV-ezRack®/Solar Mounting System/Ground Series/Fixed Tilt/SolarTerrace™ II-A
SolarTerrace™
II-A
Pre-assembled, Durable and Earthed Ground Mount Frame with Ramming
Features
- Pre-assembled ground mount system
- Full earthing function
- Suitable for rural, country, commercial and utility-scale installations
- Wide range of flexibility
- Reduced number of parts
- Cost-Effective
Image courtesy: NS Energy – Solahart Tamworth
Built to Last
This quality frame is trimmed at every angle for fast deployment reducing labour costs.
It was designed with a unique post profile which allows reduced embedment and therefore saves on material and labour.
These features, combined with its high grade of pre-assembly make the SolarTerrace™ II-A one of the best ground mount systems you can find.
Image Courtesy: Phased Electrical and Solar
Product Details |
Customised |
|
Product Details |
Key Benefits
Reduced Labour Costs
Through our unique, patented component design and pre-assembled supports with pre-installed positioning clamps, labour time and costs are greatly reduced.
Reduced Component Costs
Our unique C-Post was designed specifically for ramming. This results in an increased friction against up-lift and it therefore requires less embedment as conventional standard posts or I-beams, which reduces not only labour time for ramming but also material costs.
Full Earthing Function
With pre-fitted pressure bolts and star washers in post head, post brace and pre-assembled support, it can create earthing continuity from T rail to post. In this way, SolarTerrace™ II-A system is a full earthing system.
Wide Range of Adjustments
As ramming can never be done exact on millimetre the Post head is designed with sufficient horizontal rotation and vertical adjustments. This combined with a generous design tolerance levels makes it easy to get the panels perfectly aligned even if the ramming isn’t 100%.
Videos
Clenergy SolarTerrace™ II-A - How to Install Animation (2017)
SolarTerrace II Installed by Springers Solar
SolarTerrace II installed at Shane Jacobson's house (Actor/Comedian)
PVezRack SolarTerrace II - Product Review
Hybrid Energy Comes to Flinders Island
Downloads
Search result: documents found
| Girder Extension for SolarTerrace-A Installation Guide | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 4 Cables) | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables) | Download |
| Grounding System Installation Guide | Download |
| Datasheet for Grounding Lug Bolt and U-Shape Copper Channel | Download |
| Datasheet for Grounding Lug with U-Shape Copper Channel | Download |
| Girder Extension for SolarTerrace II-A Datasheet | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape) | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 4 Cables, Landscape) | Download |
| SolarTerrace II-A Installation Guide | Download |
| SolarTerrace II-A Brochure | Download |
| Girder Extension for SolarTerrace-A Installation Guide | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 4 Cables) | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables) | Download |
| Grounding System Installation Guide | Download |
| Datasheet for Grounding Lug Bolt and U-Shape Copper Channel | Download |
| Datasheet for Grounding Lug with U-Shape Copper Channel | Download |
| Girder Extension for SolarTerrace II-A Datasheet | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape) | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 4 Cables, Landscape) | Download |
| SolarTerrace II-A Installation Guide | Download |
| SolarTerrace II-A Brochure | Download |
| SolarTerrace II-A Brochure | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 4 Cables) | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables) | Download |
| Datasheet for Grounding Lug Bolt and U-Shape Copper Channel | Download |
| Datasheet for Grounding Lug with U-Shape Copper Channel | Download |
| Girder Extension for SolarTerrace II-A Datasheet | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape) | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 4 Cables, Landscape) | Download |
| Girder Extension for SolarTerrace-A Installation Guide | Download |
| Grounding System Installation Guide | Download |
| SolarTerrace II-A Installation Guide | Download |
Components
End Clamp
ER-EC-ST
Inter Clamp
ER-IC-ST
T-Rail 110
ER-R-T110
Splice for T-110 Rail
ER-SP-T110
Rail Clamp for T-Rail with Grounding Pins
ER-RC-T/G
Post Head for C-Post with Grounding
ER-PH-CP/A
C-Post, 2800mm
ER-CP-2800/A
Post Brace for C-Post
ER-PB-CP/A
Post Brace for C-Post on Double Support with Grounding
ER-PB-CP/D/A

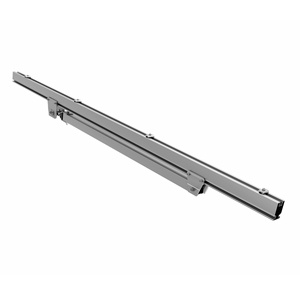

Support (Pre-assembled)
ER-S-STIIA/S
Double Support (Pre-assembled)
ER-S-STIIA/D
Universal Clamp for Frame Height 30-46mm with Grounding Clip
C-U/30/46-G
Universal Clamp for Frame Height 30- 46mm
C-U/30/46
East/West Adjustable Bracket for T-Rail 110 with Grounding
BR-R110/EW/G (Optional)
Accessories
Cap for T-110 Rail
ER-CAP-T110
Cap for Square Girder
ER-CAP-G/A
Grounding Clip
EZ-GC-ST
Grounding Lug
EZ-GL-ST
Grounding Lug with U-Shape Copper Channel
EZ-GL-ST/UC
Universal Cable Clip for PV Panels for Holding 2 Cables
EZ-CC-PV/2
Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape
EZ-CC-PV/2/L
Universal Cable Clip for PV Panels for Holding 4 Cables
EZ-CC-PV/4
Universal Cable Clip for PV Panels for Holding 4 Cables, Landscape
EZ-CC-PV/4/L
Cable Clip for T-Rail Holding 4 Cables
EZ-CC-TR4
Girder Extension
GE-STA/200
