SolarTerrace™

MAC

Magnesium Aluminum Zinc Coating Steel - Solar Ground Mounting Solution

Features

PV-ezRack SolarTerrace™ MAC (STMAC) is a ground mounting system for

  • Large-scale commercial and utility PV installations.
  • Steel Coating > Aluminized Magnesium Zinc
  • Very high corrosive resistance.
  • Aesthetic design & a robust solution
  • Can be installed with ground screws or concrete
  • Cost-effective

Built To Last

PV-ezRack® SolarTerrace™ MAC (STMAC) is a robust, solid structure built to last. Its additional treatment of the Aluminized Magnesium Zinc gives the build that extra durability.

Clenergy has created a well-considered design, whilst keeping it cost-effective and convenient to install with a large range of adaptability.

This design allows for 2 x rows of solar modules in portrait orientation.

Product Details

Product Details

Key Benefits

Corrosion Resistance

Aluminized Magnesium Zinc coating

Elegant Surface

MAC treatment gives an added glossy shine to the finished product

Orientation

2 x Portrait rows

Videos

Install PV ezRack SolarTerrace™ MAC Ground Mounting System

Clenergy Japan at PV EXPO 2023 - Tokyo Big Sight

Downloads

Search result: documents found

Components

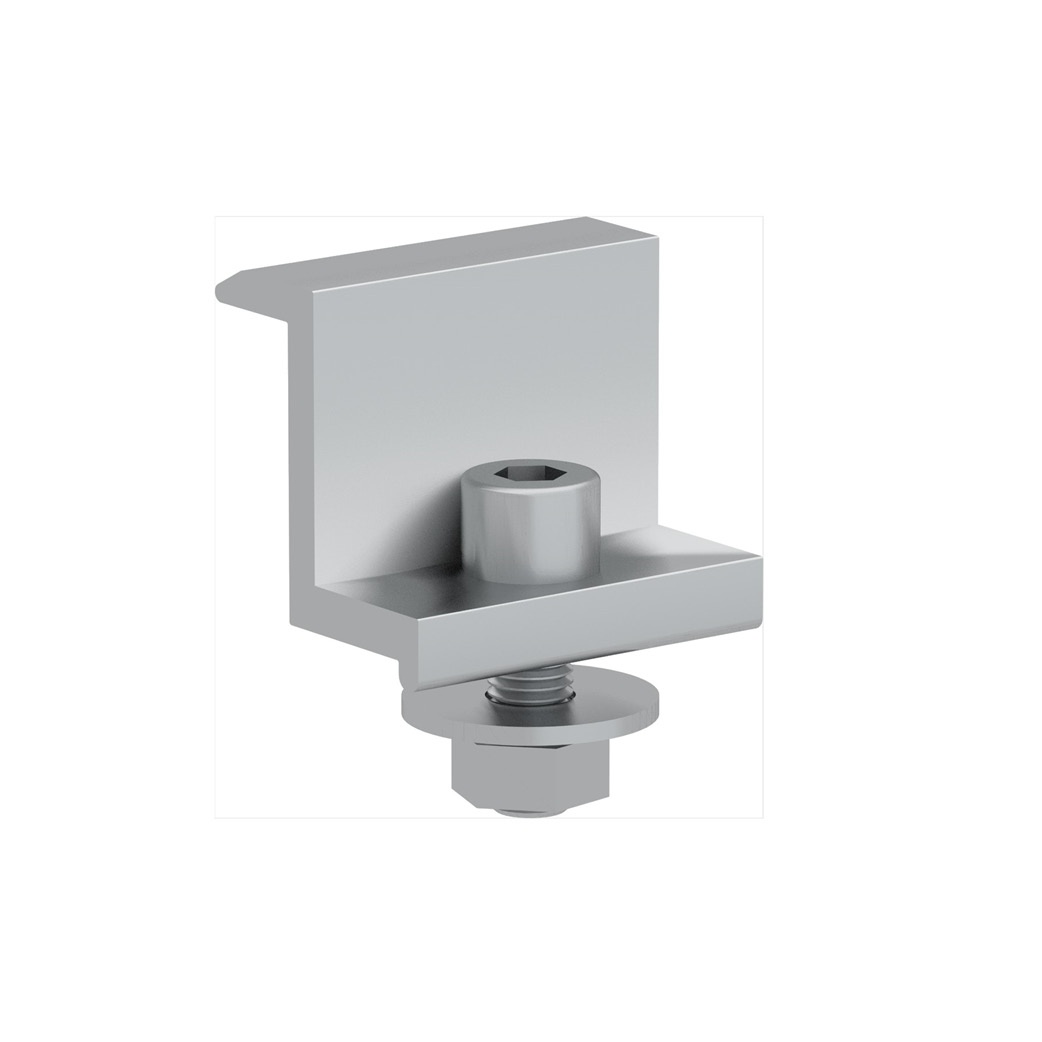

End Clamp ER-EC-N35

End Clamp

ER-EC-N

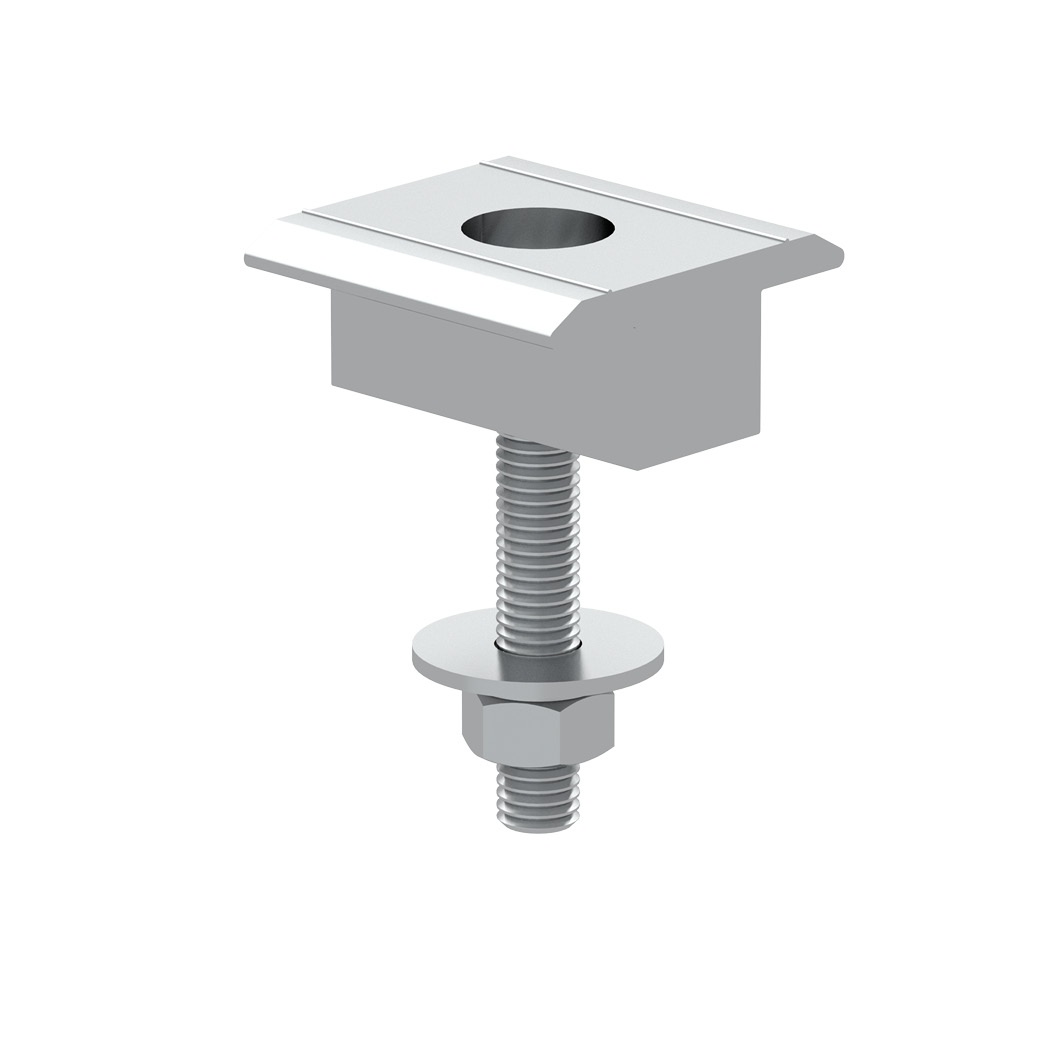

Inter Clamp ER-IC-N32 35 U18

Inter Clamp

ER-IC-N/U18

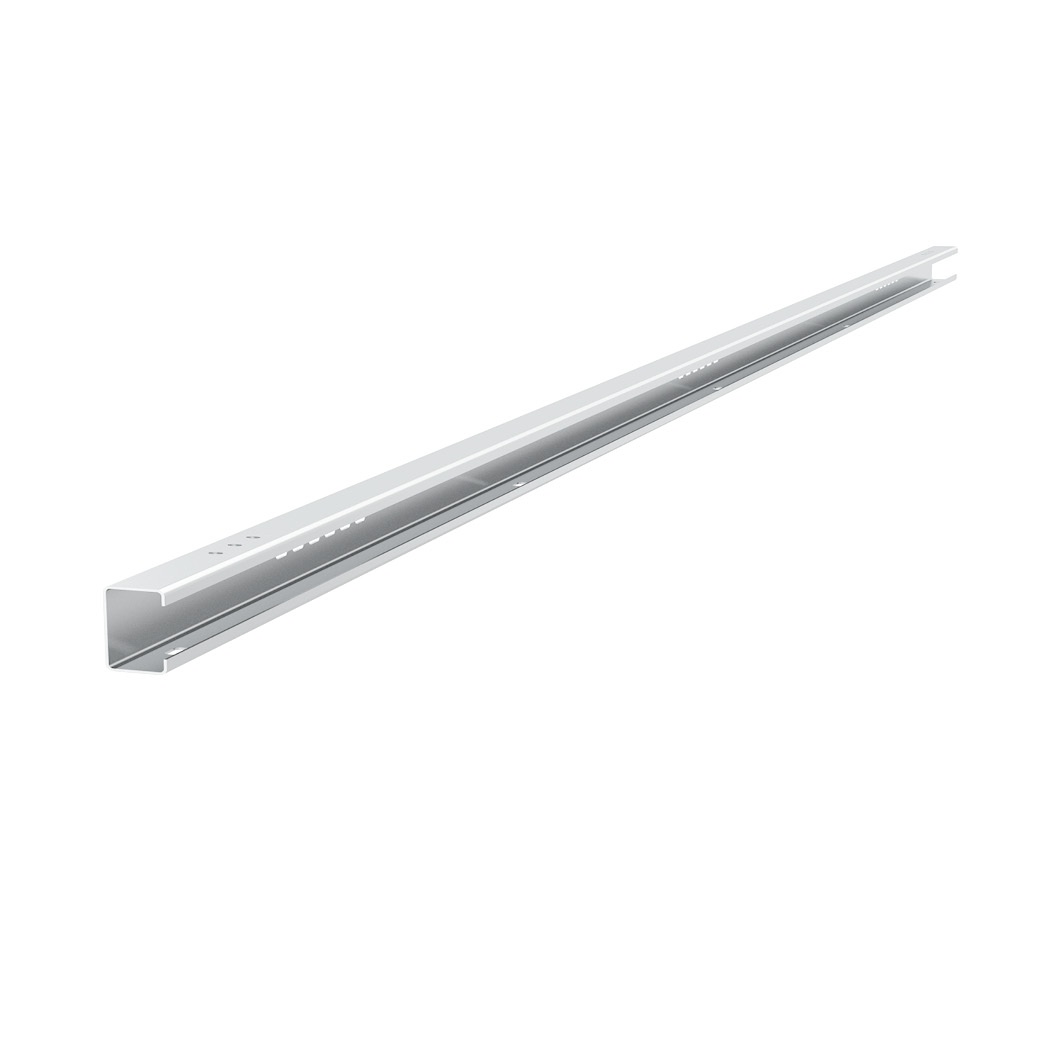

C Steel 80 40 L (Girder) R-C80 40-P

C Steel 80*40*L (Girder)

R-C80/40-P

C Steel 80 40 L R-C80 40-P

C Steel 80*40*L (Front Post)

R-C80/40-P

C Steel 80 40 L R-C80 40-P

C Steel 80*40*L (Rear Post)

R-C80/40-P

L Base B-100 63 220

L Base

B-100

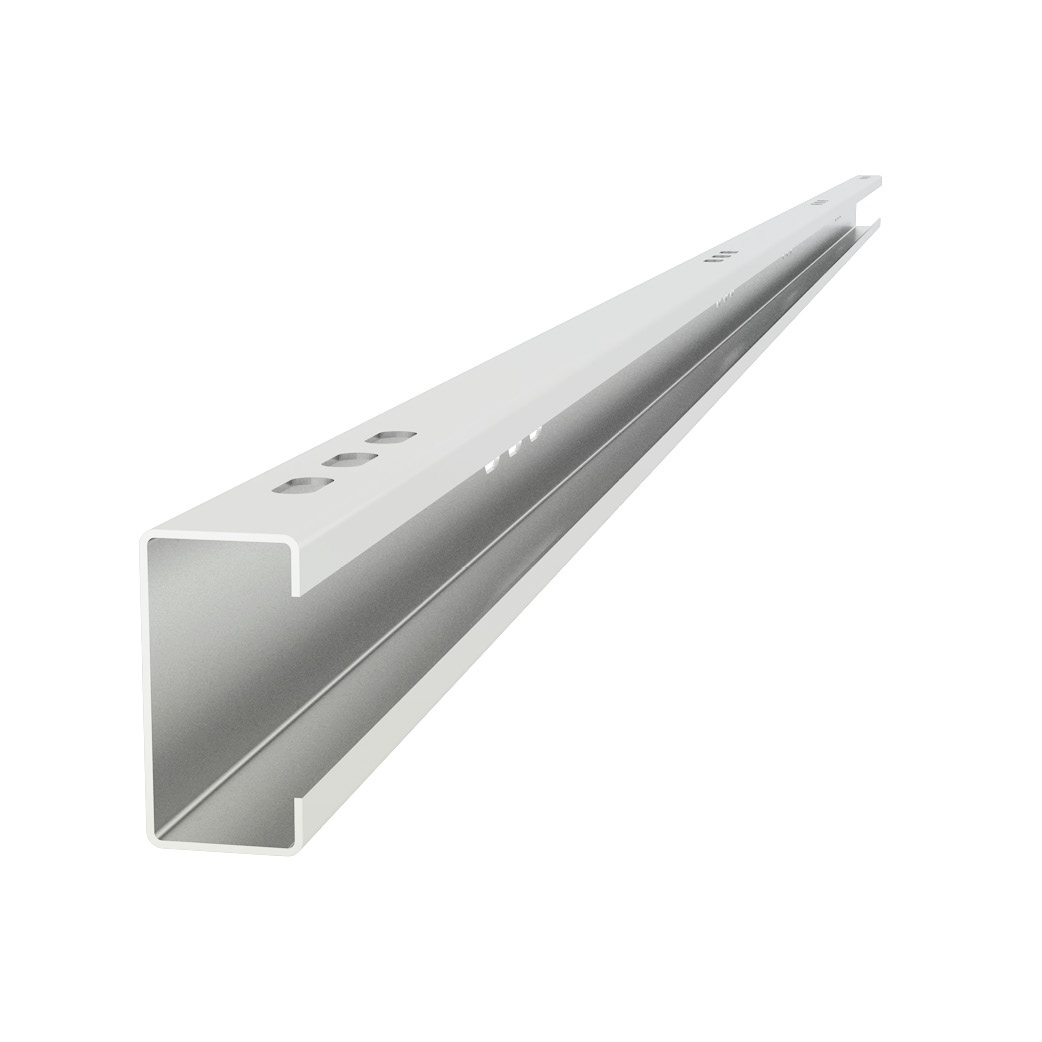

C Steel 60 40 L R-C60 40-P

C Steel 60*40*L (Side Support)

R-C60/40-P

C Steel 60 40 L R-C60 40-P

C Steel 60*40*L (Rail)

R-C60/40-P

Splice for C Steel SP-C70 50

Splice for C Steel

SP-C

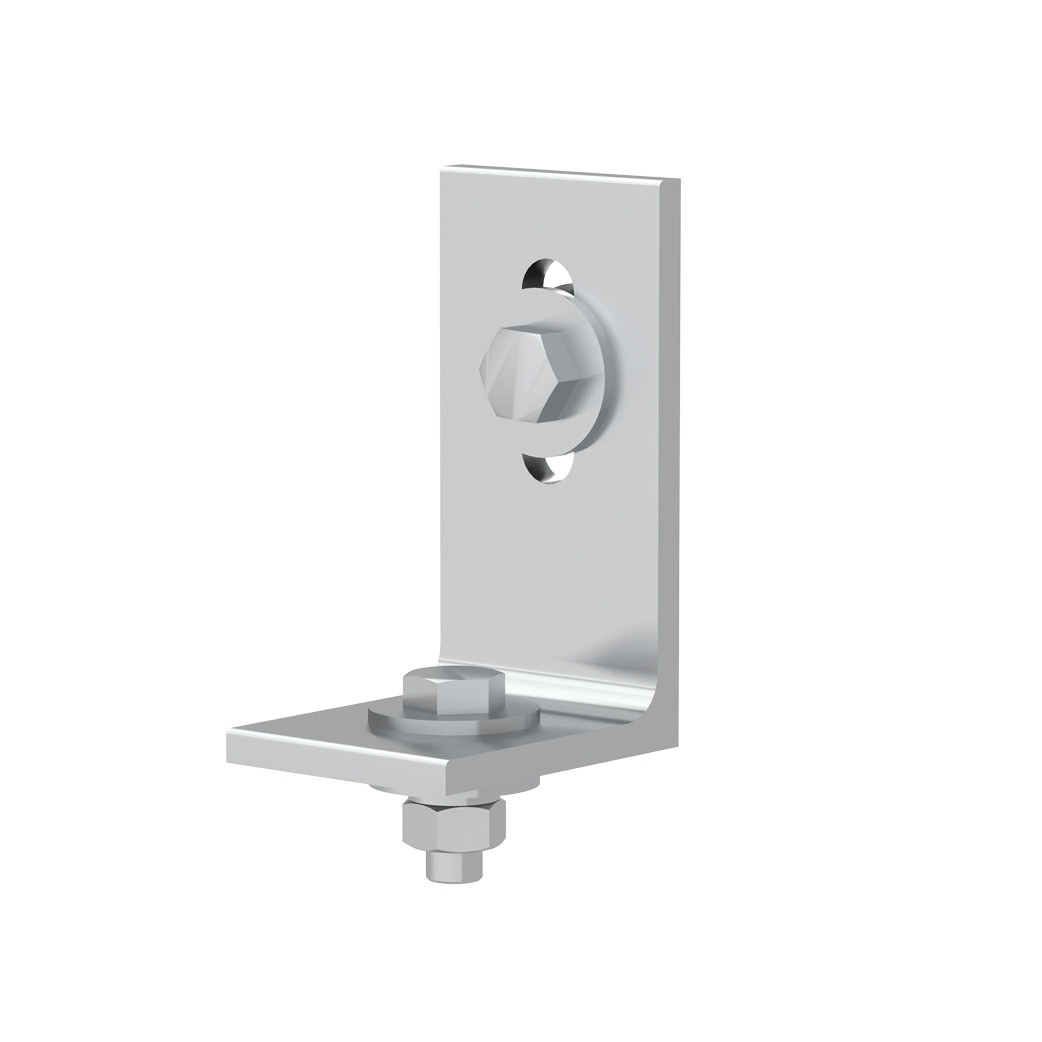

Angle Bracket (with 2 Bolts) AB-C60100-2B

Angle Bracket (with 2 Bolts)

AB-C60/100-2B

Tie Rod M12 L TR-12 3750

Tie Rod M12*L

TR-12

Tie Rod Connector ER-CN-100 63 60

Tie Rod Connector

ER-CN-100

Ø76 L Ground Screw (Continuous Small Blade) GS-76 3.5 13-F1

Ø76*L Ground Screw (Continuous Small Blade)

GS-76-F1

Accessories

Grounding Clip EZ-GC-S

Grounding Clip

EZ-GC-S

Grounding Lug EZ-GL-B

Grounding Lug

EZ-GL-B
